Proizvodi

Unitronics PLC

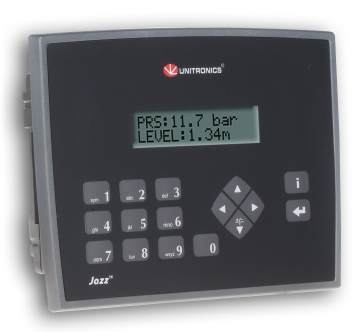

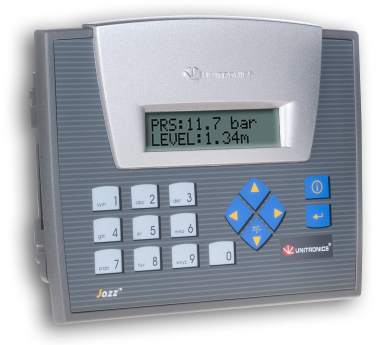

JAZZ SERIJA PLC KONTROLERA







Upoznajte prednosti Nove Jazz 2 serije:
• Veća brzina čak 30x
• Dvostruko više memorije
• Ugrađeni mini-USB port za programiranje
• Ethernet preko dodatnog Add-on Porta
• Potpuna kompatibiljnost sa postojećim
• Jazz modelima



HMI
• Do 60 različitih ekrana definisanih od strane korisnika
• Podrška za razne jezike i grafičke simbole
• Skrolovanje kroz pre-programirane recepte/menije



PLC
• Ladder Logika za programiranje omogućava funkcionalnu fleksibilnost
• Funkcije uključuju interapte, petlje, matematičke,
• Funkcije, store & compare funkcije
• Time-based kontrola u 3 klika
• High-speed brojači& PWM izlazi
• Direktni temperaturni ulazi
• Auto-tune PID, do 4 petlje


Komunikacije
• SMS poruke preko GSM modema
• Udaljeni pristup
• PC pristup preko MODBUS-a ili OPC servera
• MODBUS umrežavanje

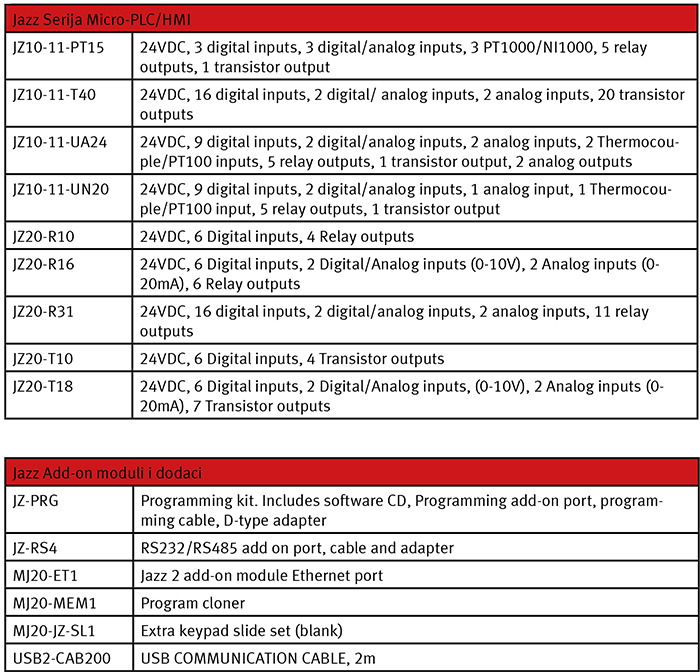

JZ10-11-PT15

24VDC, 3 digital inputs, 3 digital/analog inputs, 3 PT1000/NI1000, 5 relay outputs, 1 transistor output

JZ20-T40

24VDC, 16 digital inputs, 2 digital/ analog inputs, 2 analog inputs, 20 transistor outputs

JZ10-11-UA24

24VDC, 9 digital inputs, 2 digital/analog inputs, 2 analog inputs, 2 Thermocouple/PT100 inputs, 5 relay outputs, 2 transistor output PNP, 2 analog outputs

JZ10-11-UN20

24VDC, 9 digital inputs, 2 digital/analog inputs, 1 analog input, 1 Thermocouple/PT100 input, 5 relay outputs, 1 transistor output

JZ20-R10

24VDC, 6 Digital inputs, 4 Relay outputs

JZ20-R16

24VDC, 6 Digital inputs, 2 Digital/Analog inputs (0-10V), 2 Analog inputs (0-20mA), 6 Relay outputs

JZ20-R31

24VDC, 16 digital inputs, 2 digital/analog inputs, 2 analog inputs, 11 relay outputs

JZ20-T10

24VDC, 6 Digital inputs, 4 Transistor outputs

JZ20-T18

24VDC, 6 Digital inputs, 2 Digital/Analog inputs, (0-10V), 2 Analog inputs (0-20mA), 8 Transistor outputs

JZ10-J-PT15

24VDC, 3 digital inputs, 3 digital/analog inputs, 3 PT1000/NI1000, 5 relay outputs, 1 transistor output

JZ10-J-T40

24VDC, 16 digital inputs, 2 digital/ analog inputs, 2 analog inputs, 20 transistor outputs

JZ20-J-T40

24VDC, 16 digital inputs, 2 digital/ analog inputs, 2 analog inputs, 20 transistor outputs

JZ10-J-UA24

24VDC, 9 digital inputs, 2 digital/analog inputs, 2 analog inputs, 2 Thermocouple/PT100 inputs, 5 relay outputs, 2 transistor output PNP, 2 analog outputs

JZ10-J-UN20

24VDC, 9 digital inputs, 2 digital/analog inputs, 1 analog input, 1 Thermocouple/PT100 input, 5 relay outputs, 1 transistor output

JZ20-J-R10

24VDC, 6 Digital inputs, 4 Relay outputs

JZ20-J-R16

24VDC, 6 Digital inputs, 2 Digital/Analog inputs (0-10V), 2 Analog inputs (0-20mA), 6 Relay outputs

JZ20-J-R16HS

JAZZ-J, Disp2X16, 6 Digital Inputs including 3 HSC/Shaft-encoder, 2 Analog/Digital Inputs, 2 Analog Inputs, 6 Relay Outputs, USB

JZ20-J-R31

24VDC, 16 digital inputs, 2 digital/analog inputs, 2 analog inputs, 11 relay outputs

JZ20-J-T10

24VDC, 6 Digital inputs, 4 Transistor outputs

JZ20-J-T18

24VDC, 6 Digital inputs, 2 Digital/Analog inputs, (0-10V), 2 Analog inputs (0-20mA), 8 Transistor outputs

JZ20-J-T18HS

JAZZ-J, Disp2X16, 6 Digital Inputs including 3 HSC/Shaft-encoder, 2 Analog/Digital Inputs, 2 Analog Inputs, 10 Transistor Outputs, USB

JZ-PRG

Programming kit. Includes software CD, Programming add-on port, programming cable, D-type adapter

JZ-RS4

RS232/RS485 add on port, cable and adapter

MJ20-ET1

Jazz 2 add-on module Ethernet port

MJ20-MEM1

Program cloner

MJ20-JZ-SL1

Extra keypad slide set (blank)

USB2-CAB200

USB COMMUNICATION CABLE, 2m
